ALIGNING MACHINE

Request a quote

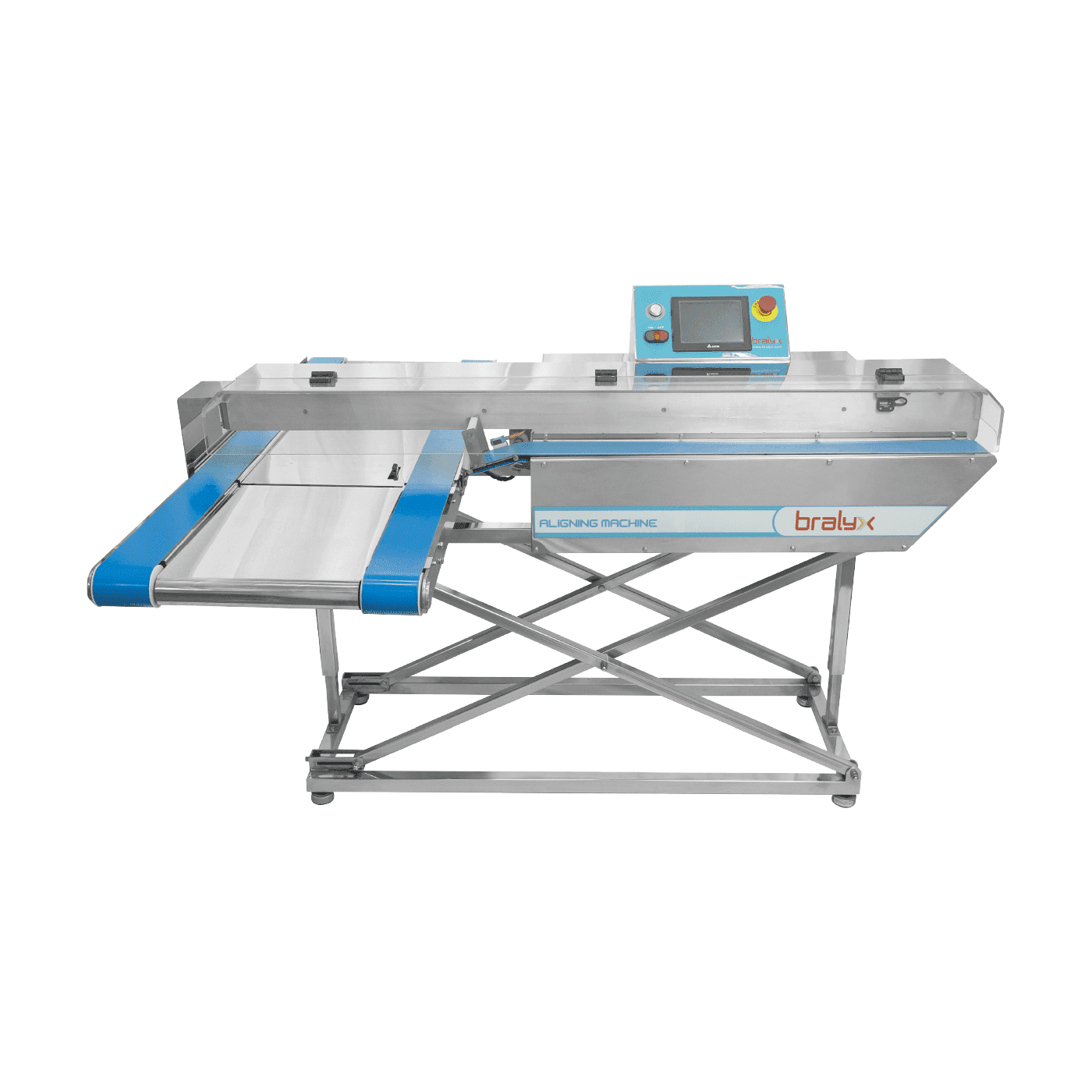

    Aligning Machine is an automatic device to place and align sweets/ cookies/ and savories on baking trays to go straight to the oven (or freezing).

    Indicated to support the production of:

    • Cereal bars
    • Fruit bars
    • Date bars
    • Various biscuits (with or without stuffing)
    • And many others!



    The Aligning Machine can be connected to Forming and Encrusting machine of the Maxiform Line (BIG 6.0 MKR/ and Cutting & Stamping Machine to produce filled products with different design*.

    This machine trio may be the perfect solution for automating the line of ma´amoul factories / cookies stores/ bakeries resulting in increased productivity and economy to business!

    * Check all avaiable shapes and pattern or customize yours.

    Some of the main features of Aligning Machine:

    • 7” PLC panel/ Stores up to 13 reprogrammed recipes for quick recall in several languages (English/ Spanish/ Portuguese/ Arabian)/  space for other customized products
    • It works with baking trays of 600 x 400mm (23,6” x 15,75”)
    • Mobile base that suits any equipment height
    • Easy to assemble, disassemble and clean
    • Structure and heads in STAINLESS STEEL . Guarantee of more durability and resistance, besides hygiene to the productive process
    • Simple operation / easy handling
    • 1 year total warranty and technical support

    Watch ALIGNING MACHINE

    Technical Specifications

    • Hourly production: 4.000 pcs/h
    • Machine dimension (Width x Length x Height):1798 x 1685 x 1152mm (70,7” x 66,3” x 45,3” )
    • Power input: 1,1kW (1,49CV) – 220V – single-phase
    • Weight: Aprox 180Kg/ 397lb

    SAFETY CERTIFICATION:

    ¹It depends on the type of the dough and shape of the product.
